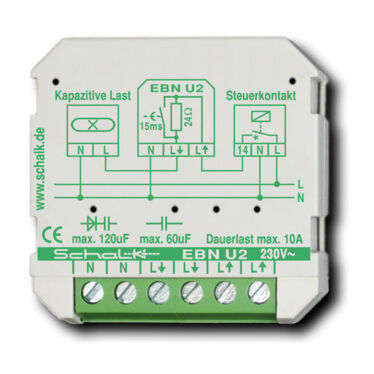

Switch-on inrush current limiter (flush-mounting)
EBN U2
The compact flush-mounted version EBN U2 is used wherever very high power-on surge currents could damage relay contacts. Electronic ballast units, fluorescent lamps and similar loads can generate power-on surge currents of far more than 100A! The same applies to compensation capacitors. If the EBN 2 / EBN U2 is connected downstream of the endangered contacts, current peaks are reduced to an uncritical value.
Additional information
Technical data
Type: | EBN U2 |
Item no.: | EBNU29 |
EAN: | 4046929301190 |
Specifications: | 230V AC, 1 NO 10A, tv=15ms |
Dimensions: | 43 x 43 x 18.5 mm |
